SE3 designed the replacement bridge for 155th Street over a tributary of Lumpkin’s Fork Creek. The scope of work included preparing plans to remove and replace the existing wooden bridge, which had begun to collapse. The City of Raymore needed to widen this one-lane bridge to a two-lane bridge to match the width of the existing street cross-section. A five-foot-deep scour due to erosion at the downstream end was identified and was addressed as part of the bridge design. Additionally, design and construction needed to be coordinated with the City of Raymore’s planned resurfacing of 155th Street.

Construction Cost

$300,000 (estimated)

Construction Schedule

Completed: 2018

Client

City of Raymore, MO

An image of an excavation under construction, with concrete on the bottom and temporary structures to retain the soil at the sides.

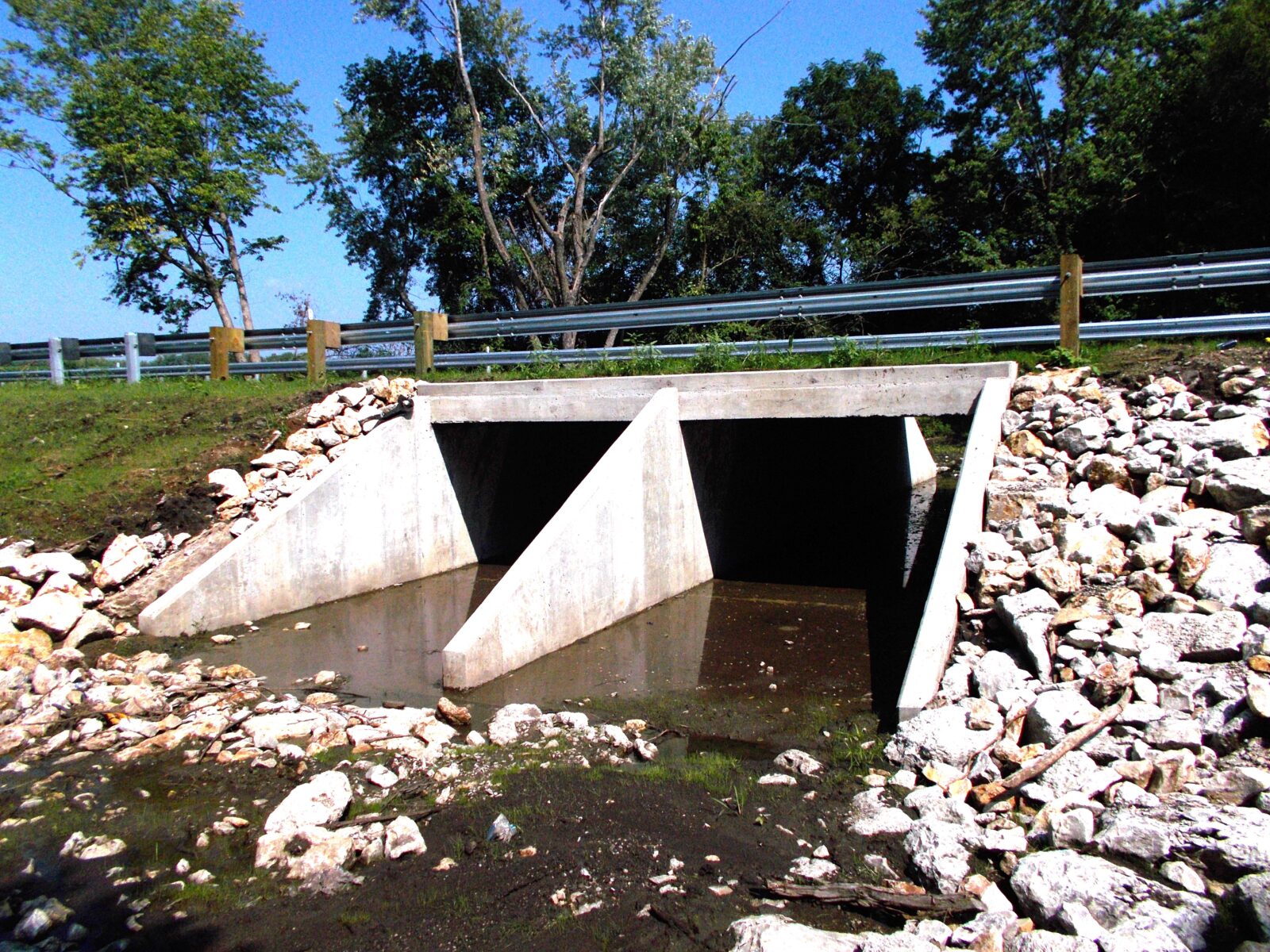

An image of a box culvert passing under a bridge. There is riprap on the slopes on either side of the culvert.
An image of a road, with a riprap slope to its left and water at the bottom of that slope.
