The projects included evaluating Route B (4.5 miles long) and Route 763 (2 miles long) corridors. These evaluations determined necessary improvements required to assure that the corridors met the most current MoDOT ADA Compliance Requirements. Specifically, the project included replacement of over 200 curb ramps and 2,500 feet of sidewalk and milling and overlaying existing asphalt pavement.

As a subconsultant, SE3 assisted with designing several of the ramps. We also assisted with striping plans, traffic control, pavement marking, traffic signal modification plans, traffic phasing, temporary signing, ADA considerations, wiring diagrams, and sequencing the diagrams for two public roadways.

Complexities: We were asked after the contract was awarded to include bicycle lane markings on the Route B project. This required careful coordination to assure that the changes were incorporated properly. SE3 was able to modify both the pavement marking plans and the signal plans, and changes were incorporated into the overall project.

Construction Schedule

Completed: 2018

Construction Cost

$4,500,000

Client

MoDOT – Central District

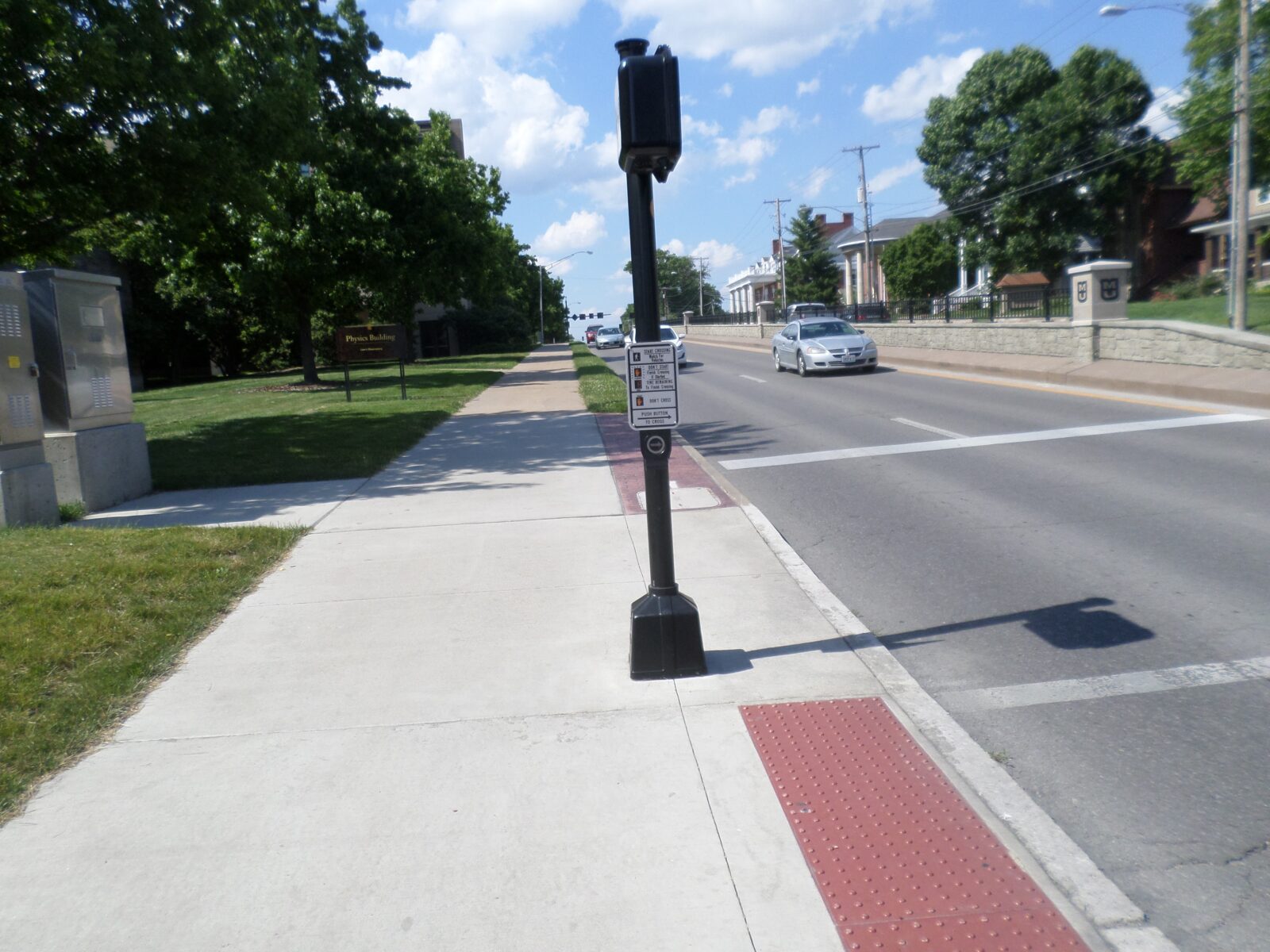

An image of a post with a pedestrian push-button and signal head on it, on sidewalk next to a road.

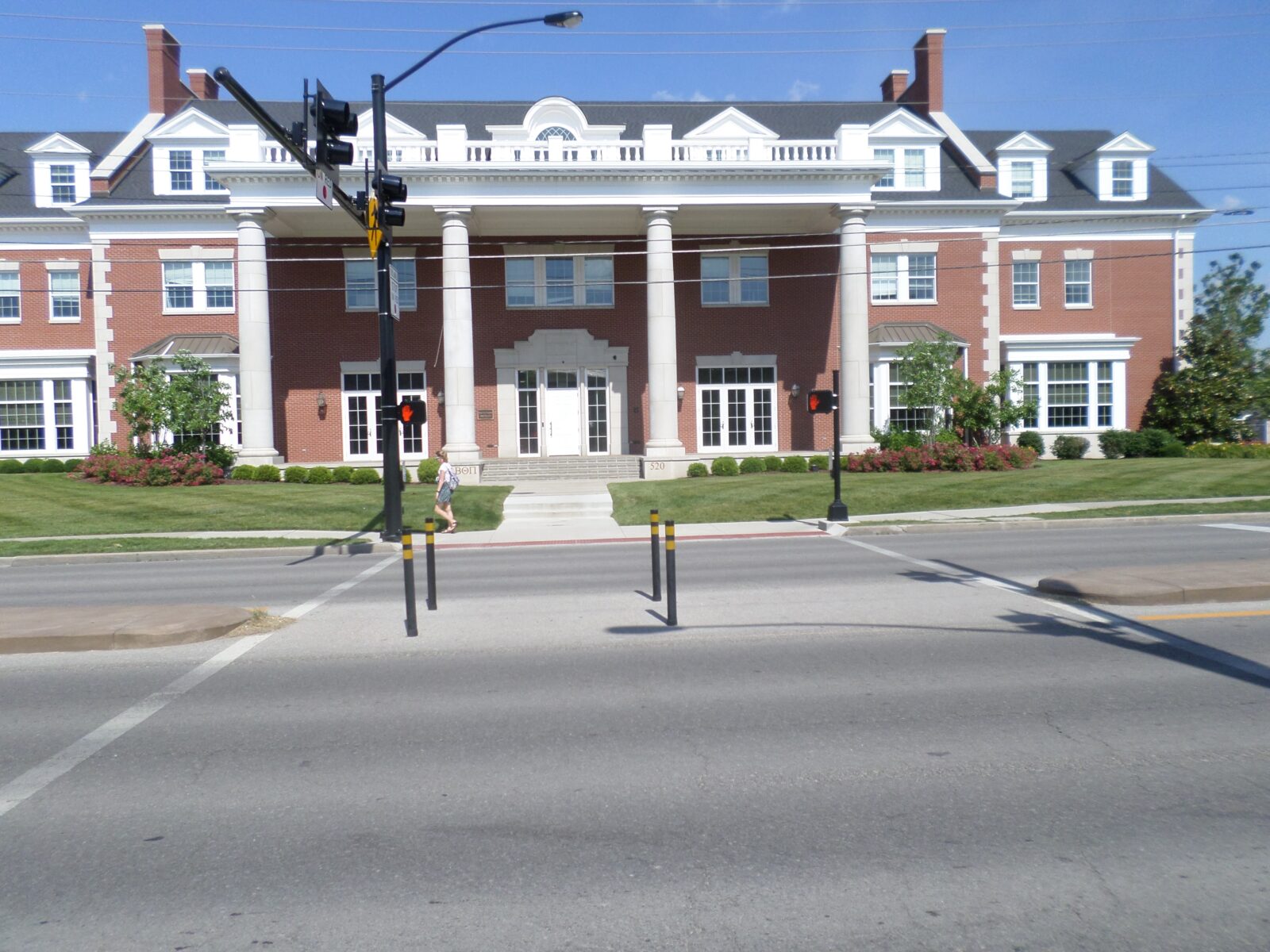

An image of a pedestrian crosswalk at an intersection. There is a gap in the central median to allow pedestrians a flat crosswalk, with bollards in it to prevent vehicles entering that space.

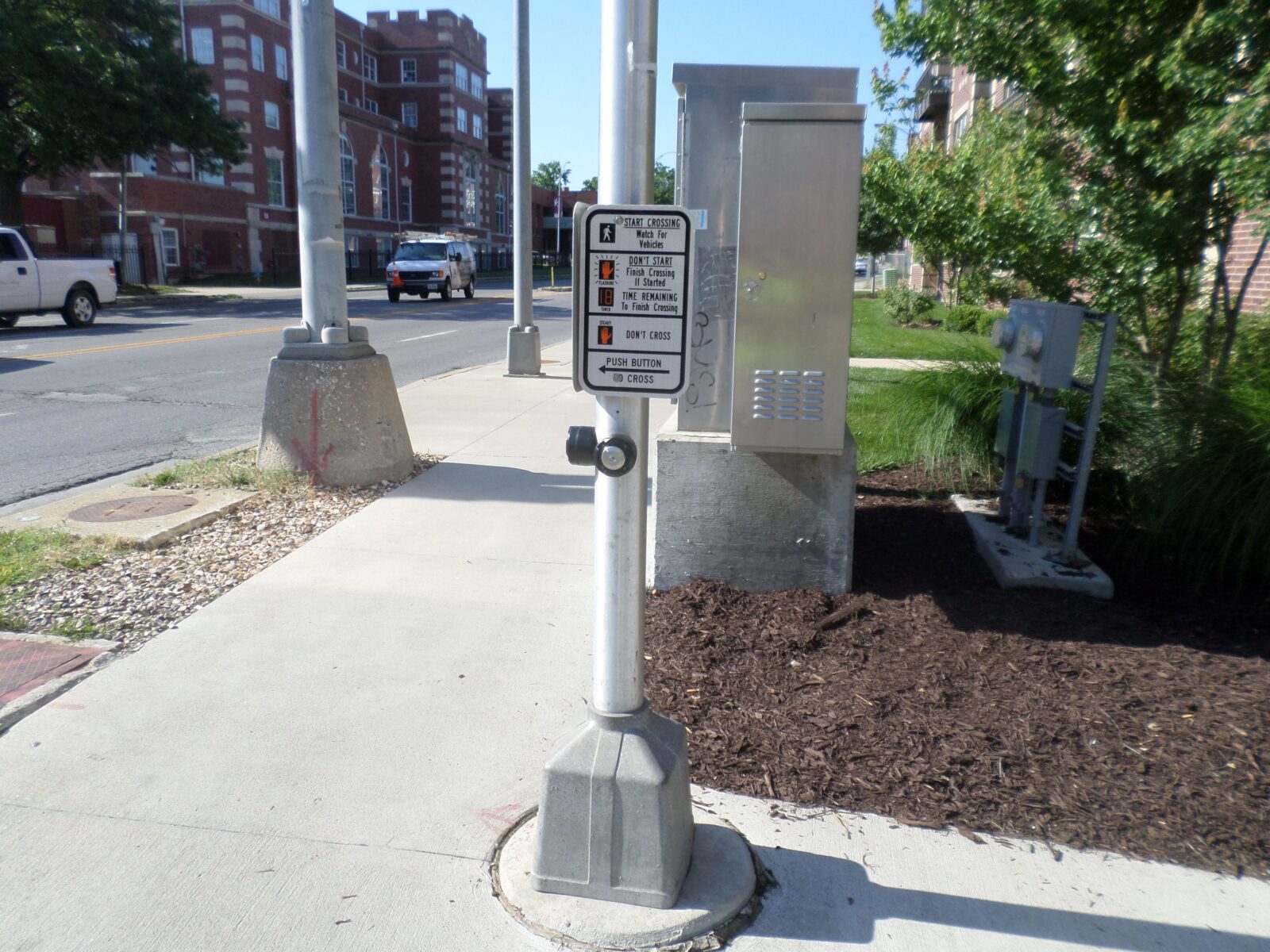

An image of two posts in the sidewalk at the corner of an intersection. Both have a pedestrian push-button and signal head on them.

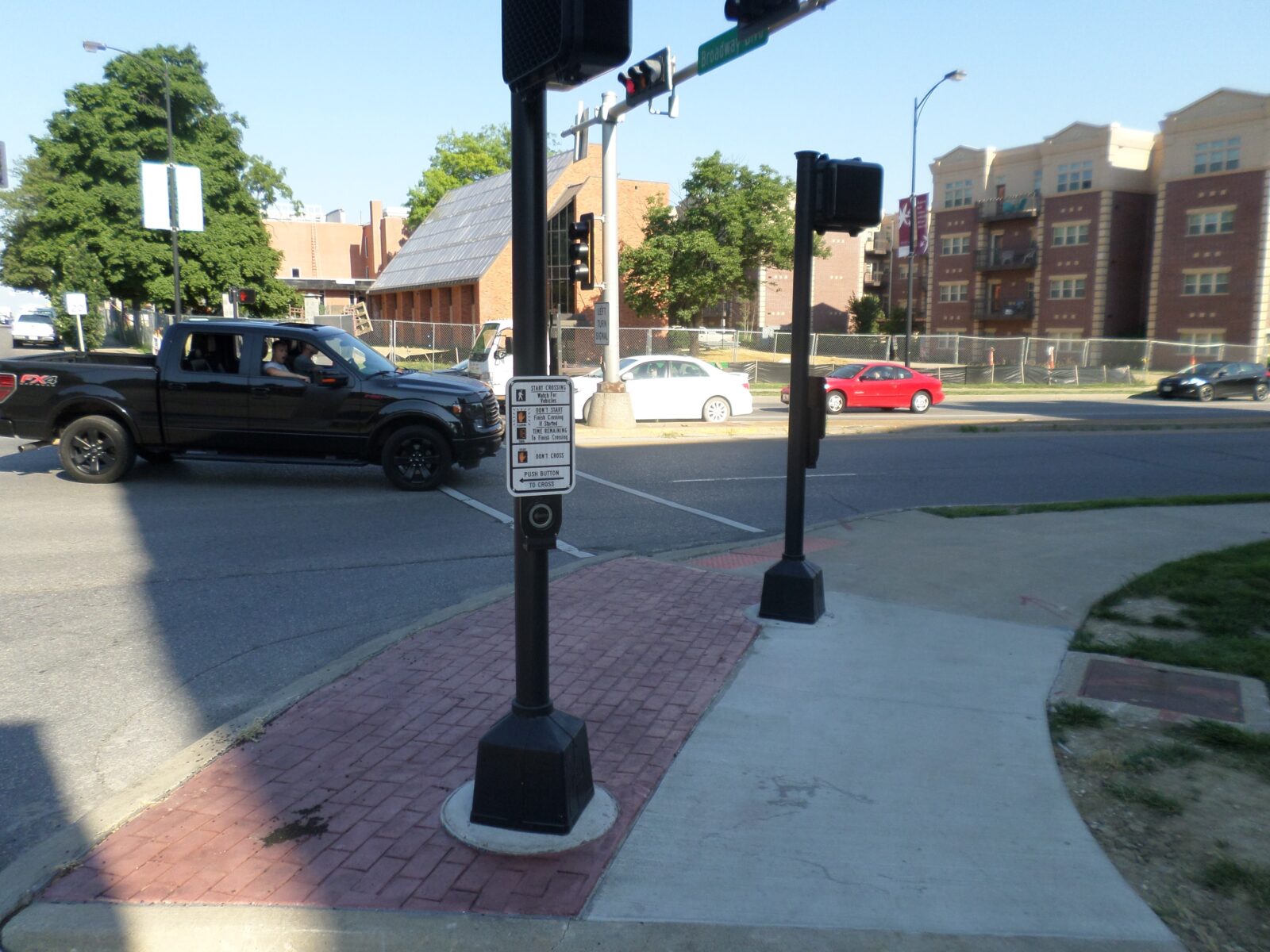

An image of a pedestrian crosswalk, split into two parts by a right-turn island. Posts are visible with pedestrian push-buttons and signal heads on them.
An image of a mast arm pole, with a pedestrian signal head attached to it, as well as signs instructing pedestrians on requesting a green phase and crossing the street.

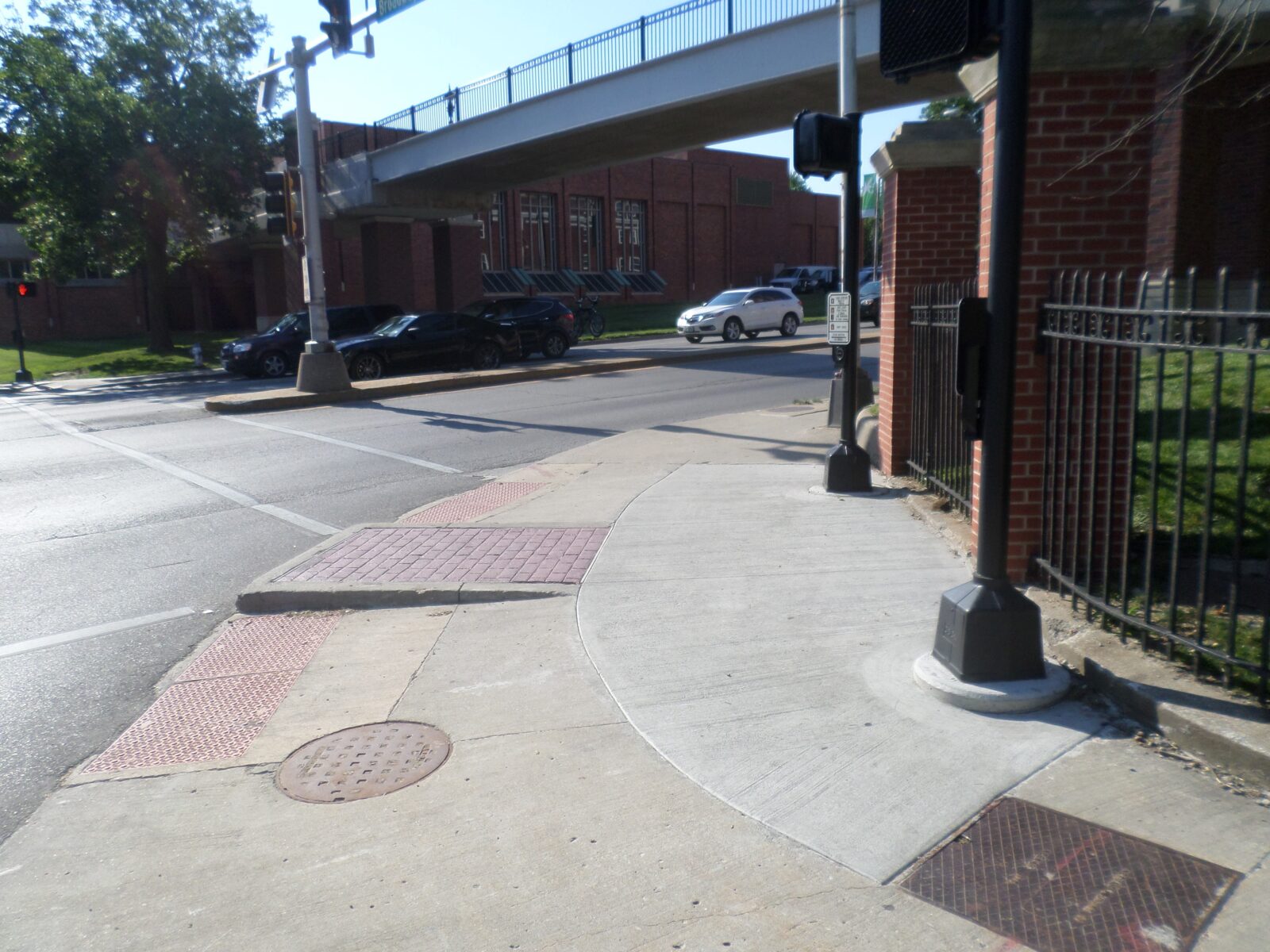

An image of a corner of an intersection. There are two poles with pedestrian push-buttons and signal heads visible. There are also two ADA ramps cut into the curb.

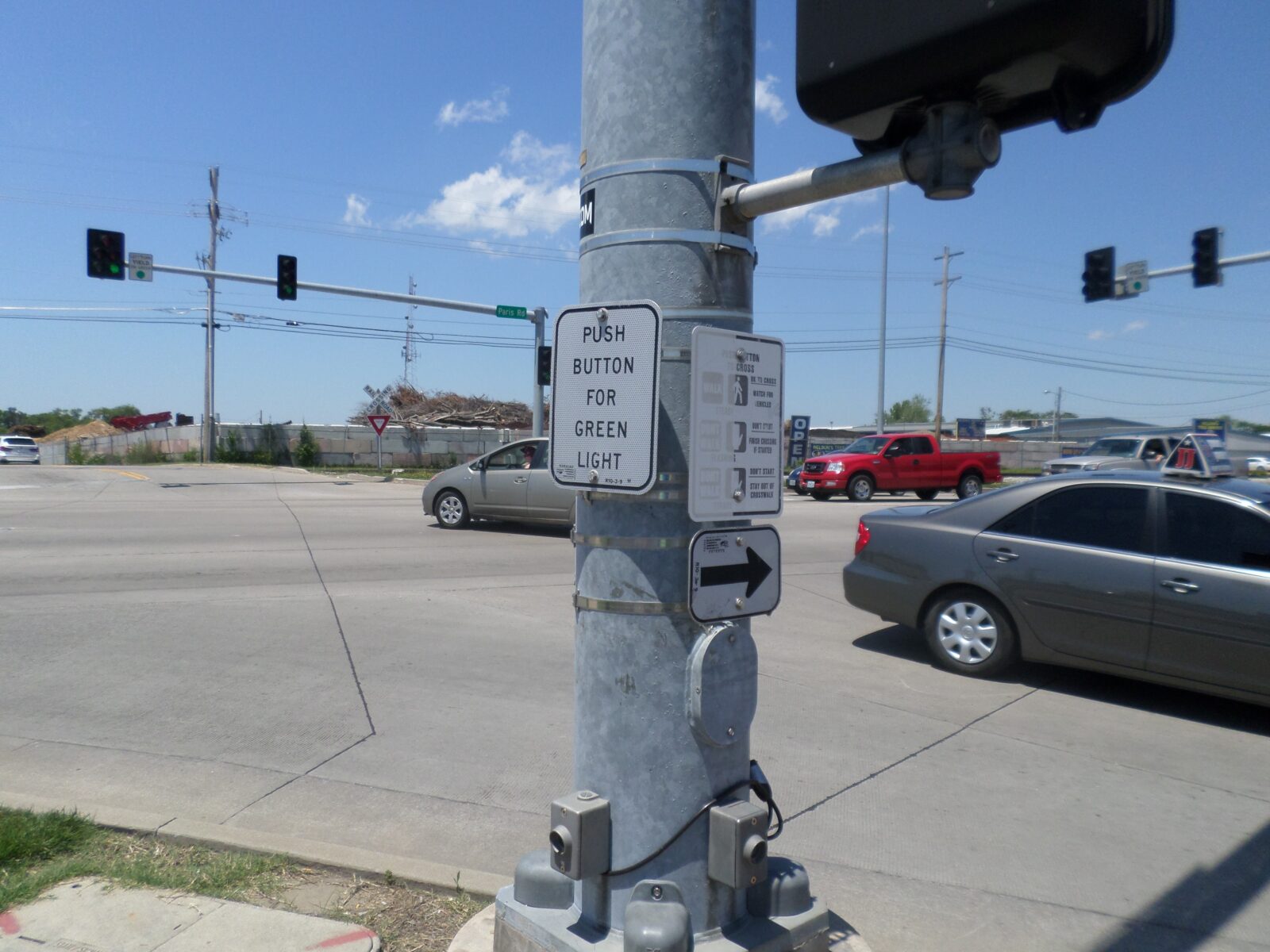

An image of a pole with two pedestrian push-buttons on it. Both push-buttons are accompanied by a sign instructing pedestrians on crossing the street.
An image of a corner of an intersection, taken from the crosswalk. There is a pedestrian signal head mounted to a pole.

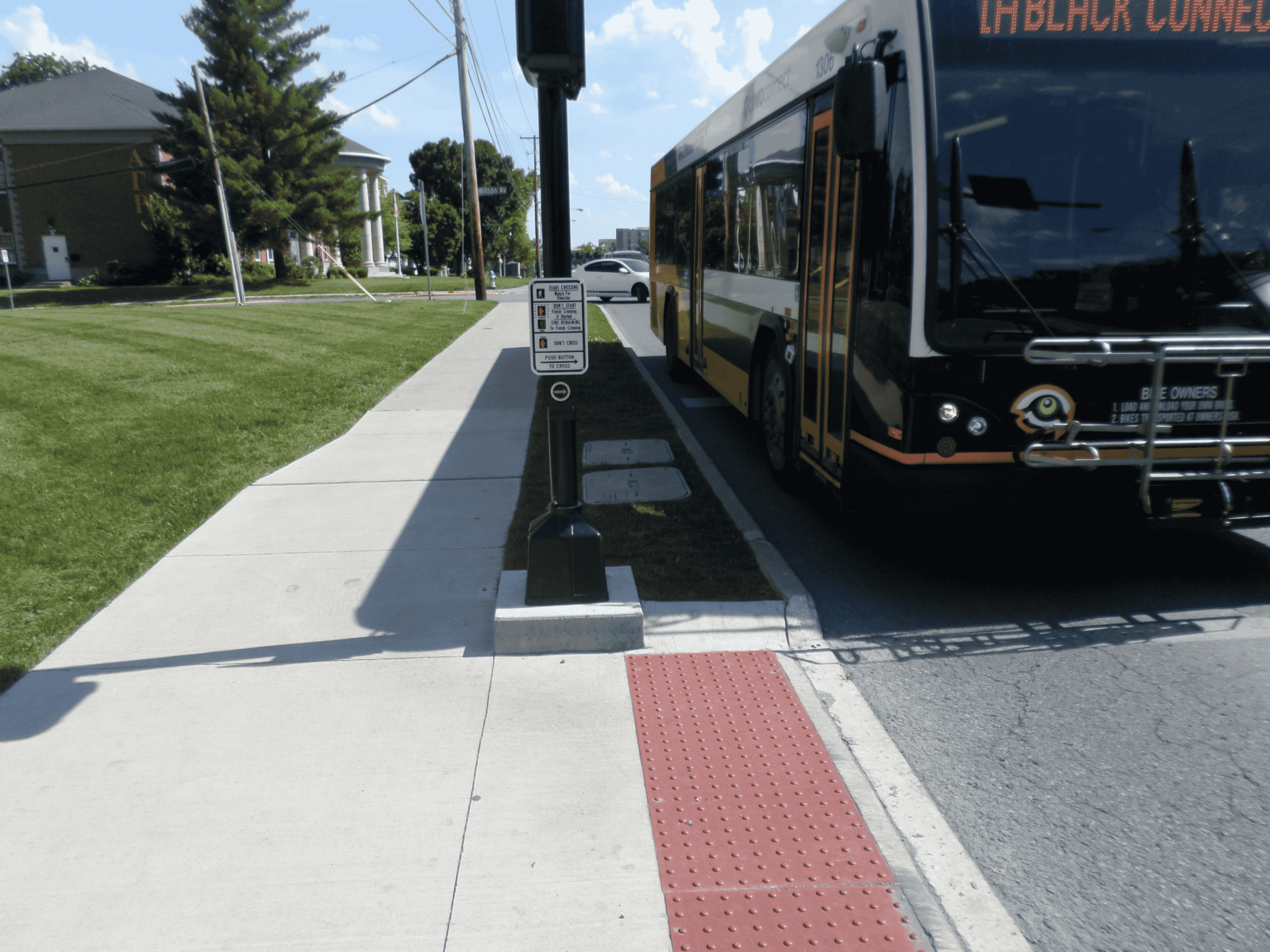

An image of a pedestrian push button on a signal post at an intersection. There is a bus next to the signal pole.
