SE3 assisted with preparing the plans, specifications, and estimate of the Sam Rayburn Tollway Expansion as a subconsultant to HDR, Inc. The project included widening from three to four lanes in both directions. Roadway widening occurred to the inside lanes of the 13.3-mile stretch of the SRT from Denton Tap Rd to the Dallas North Tollway with associated replacement/expansion of guide signs and pavement markings. Previously SE3 was a part of the Schematic and Environmental study for the entire stretch of the Sam Rayburn Tollway.

SE3’s scope for the project was signing and striping.

  • The project included replacing 65 signs that were not compliant with current Texas MUTCD standards and placing pavement markings, delineation, and object markers along the 13-mile stretch
  • SE3 prepared engineer cost estimates and schedules for signing and striping
  • We analyzed existing sign mounting heights and offsets from the roadway to determine if existing signs and structures met current NTTA specifications
  • The project included 44 new cantilever sign structures and eight bridges impacted by construction and marked for replacement

Construction Cost

$84,000,000

Construction Schedule

Completed 2022

Client

HDR, Inc./ NTTA

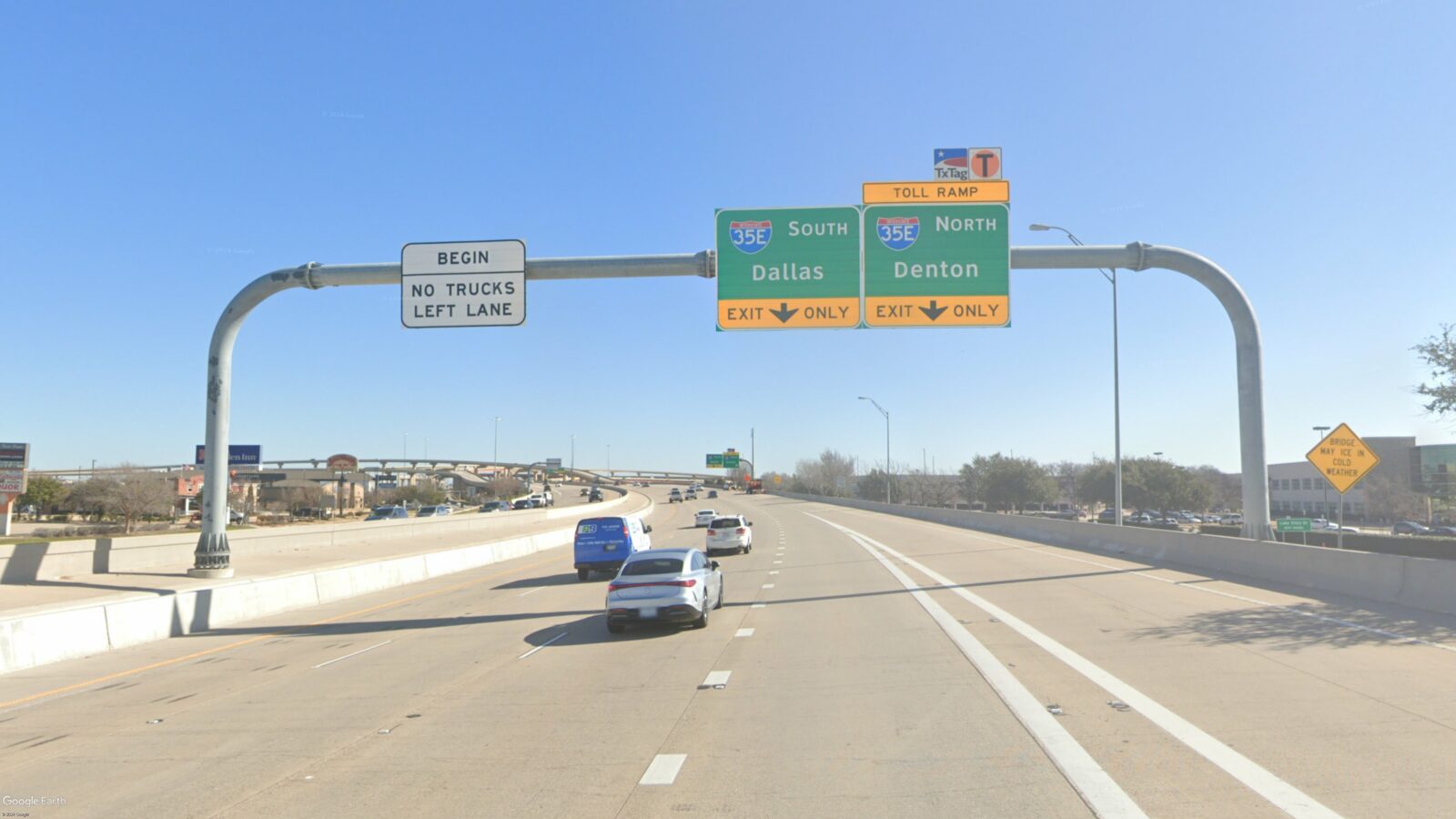

Image of an overhead sign bridge and signs, taken from the road.

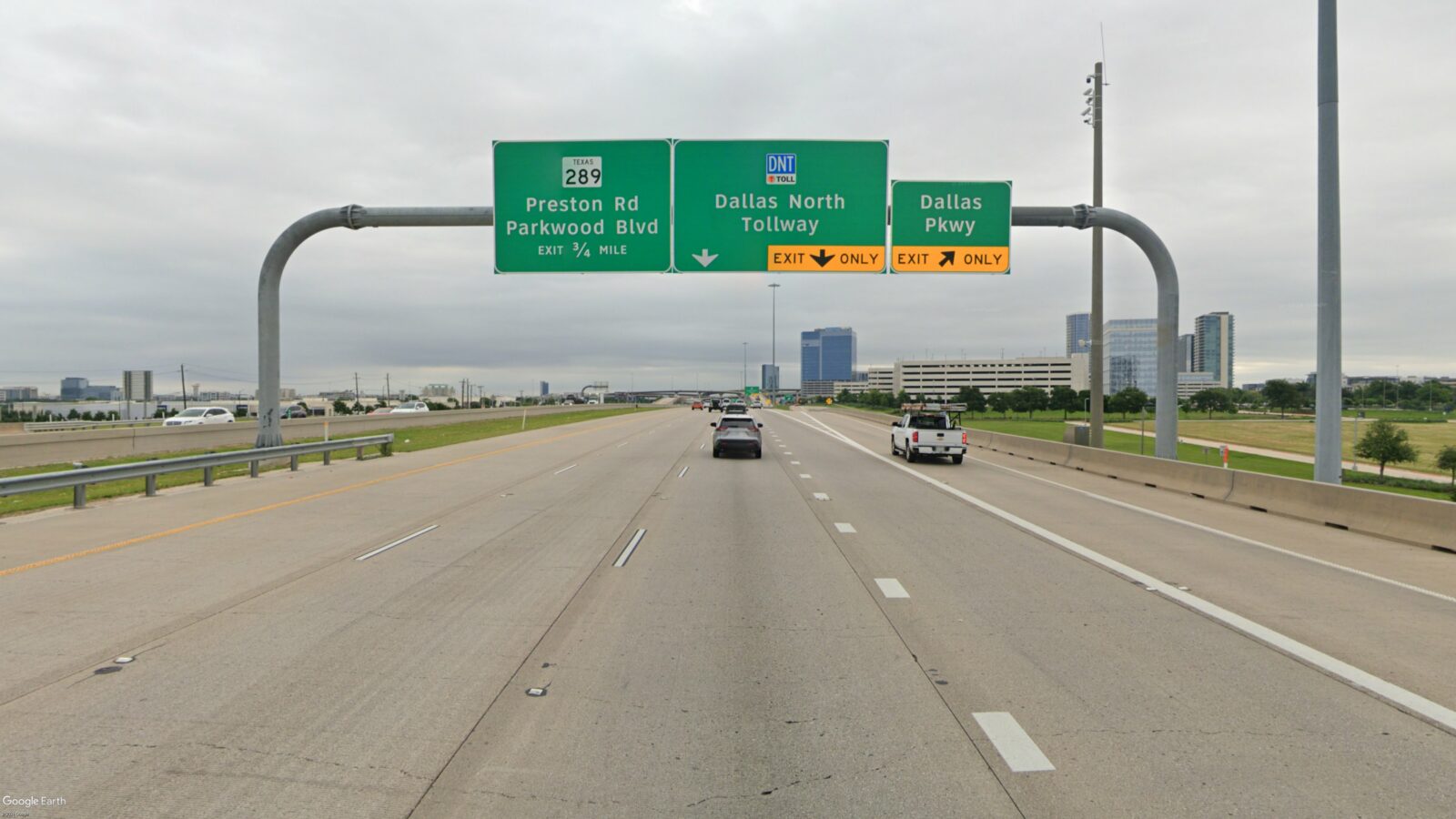

Image of an overhead sign bridge and signs, taken from the road.

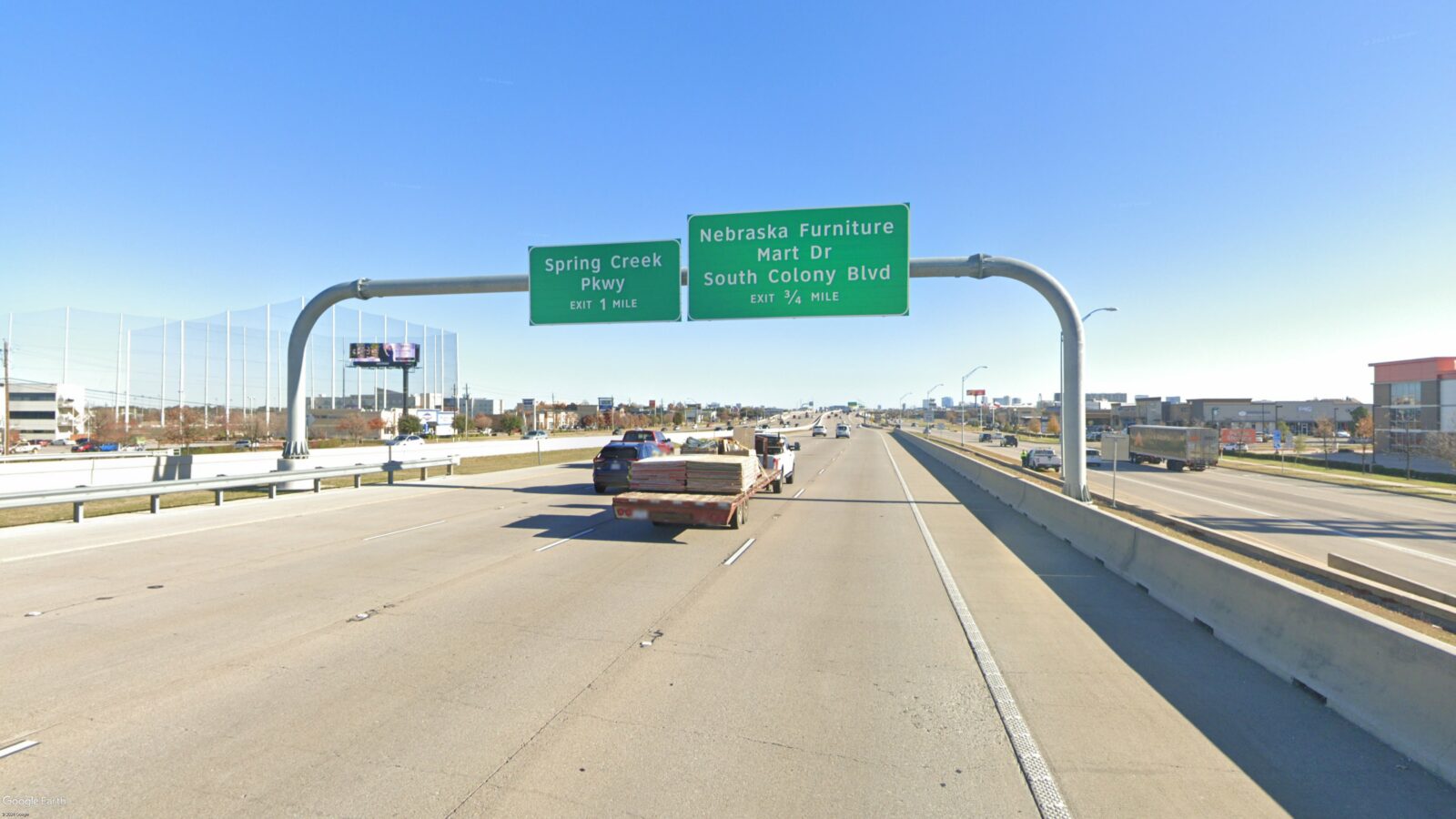

Image of an overhead sign bridge with signs, taken from the road
